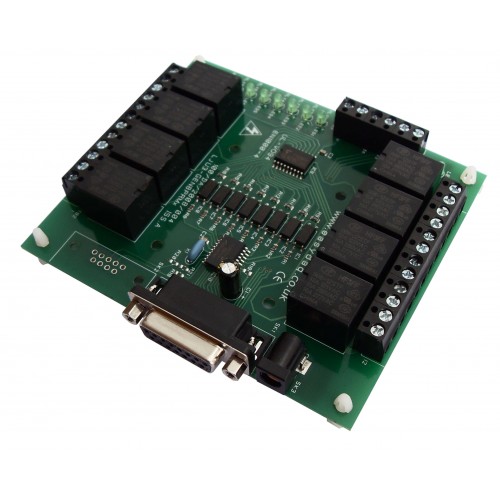

The SEQ8PR board is designed for use as a simple startup sequencer.
On power up, the 8 Opto isolated relays are sequentially enabled by a dedicated processor at 1 second intervals. The relays remain energised until the power is removed The individual digital signals are also available on a 15 way D type connector, along with power and the 4 digital I/O from the single part connector TB3.
The 4 I/O ports and power are accessible on the single part connector (TB3)
Changeover Relay (SPDT) outputs are accessed via single part connectors (TB1 and TB2).
This version uses 6V rated relays for low power consumption at 5v operation. A good 5V supply is needed for reliable operation.
Our programming service can help if you require a customised sequence - just contact the team.
These are industry standard relay boards and products. High quality, for professional electronic automation, connectivity, and control.
Easydaq products are used in research and education, security, industrial applications, power and energy management, motor and device control. There are uses across various industries, including maritime , rail, automotive, automation, measuring and calibration, agriculture , medical, sanitation, light and power solutions, fire protection, security, and many more.
You can order any of our boards with customisations or without connectors fitted - contact us for prices
EasyDAQ is primarily a business-to business seller, supplying products around the world, therefore advertised prices exclude VAT. Customers in the UK and Northern Ireland will be charged VAT at checkout.
Operational Parameters | |
Manufacturer | EASYDAQ |
Control Interface | Digital |
Relay coil voltage | 6V |
Relay Channels | 8 |
Relay contact current | 10A |
Relay Type | POWER |
Opto-isolated | YES |
Special Function | YES - PROGRAMMABLE SEQUENCING RELAY BOARD |
SEQ8PR
- Brand: Easydaq
- Product Code:SEQ8PR
- Availability:In Stock
-
£75.00
-
- 10 or more £60.00
- 25 or more £53.25
- 50 or more £49.95
- 100 or more £46.95
- 250 or more £43.88
- 500 or more £40.65
