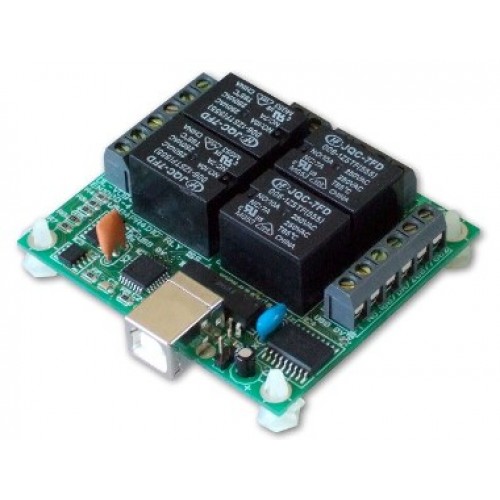

This low cost, general
purpose, USB powered board has four opto-isolated relays and four general purpose digital I/O channels. The relays and PCB
tracking are designed to handle 240VAC@10A. This board is fitted with 6V operating relays for low power consumption at 5V from either USB or external supply.
Access to all relay contacts and the 4 DIO channels is via fixed screw terminal block connectors along the edge of the card. Suitable for a wide range of control and mains voltage power switching purposes, it also offers screw terminal access to the USB power connections for possible onward powering/use in your target system .
The board comes with +5V & relay channel LED status indicators. Nylon feet are fitted in each corner which will take self tapping screws. They can easily be removed to allow the cards to be mounted on pillars or stacked. There is also a perspex cover available which offers general protection of the card and prevents accidental contact with any of the relay contacts or screw terminal connections. In addition, there is a DIN rail mount/cover option available.
These are industry standard relay boards and products. High quality, for professional electronic automation, connectivity, and control.
Easydaq products are used in research and education, security, industrial applications, power and energy management, motor and device control. There are uses across various industries, including maritime , rail, automotive, automation, measuring and calibration, agriculture , medical, sanitation, light and power solutions, fire protection, security, and many more.
You can order any of our boards with customisations or without connectors fitted - contact us for prices
'Pre-Order' simply means that we will build to order. Delays are minimised - with most orders dispatched within 48 hours. More time is needed if we have limited PCB stock. If you require clarification of timings, please phone or email us.
EasyDAQ is primarily a business-to business seller, supplying products around the world, therefore advertised prices exclude VAT. Customers in the UK and Northern Ireland will be charged VAT at checkout.
|Relay coil voltage||6V|
|Relay contact current||10A|
|Digital input channels||4|
|Digital output channels||4|
|Connector||SINGLE PART CONNECTORS|
- Brand: Easydaq
- Product Code: USB4PRMx
- Availability: Pre-Order
- 10 or more £46.80
