Board redesign in progress - contact us for lead times on bulk orders

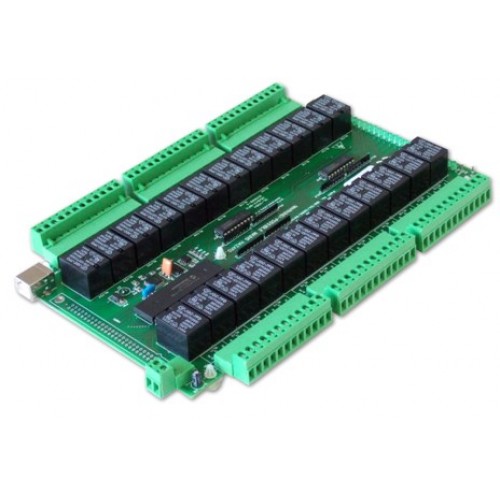

(Also known as product USB24MxP)  A low-cost, general -purpose, USB powered 24 channel relay board.  Can be commanded via simple ASCII character commands - example programs available for download in several programming languages.  PC, MAC & Linux compatible.  Free shipping (Worldwide).

Supplied with 120/240VAC, 10Amp power relays.  Suitable for a wide range of control/mains voltage power switching purposes, the PCB tracking is designed to handle 240VAC @ 10amps.

Access to all relay contacts via two part (male/female) side entry, screw terminal blocks mounted  along each edge of the card.  The cards are designed to be stacked, with the side entry connectors allowing for rapid assembly & dismantling.  Power & channel status indicators are visible along one end of the card.

Supplied with nylon feet in each corner which will take self tapping screws or allow the card to be sat on a surface.

The board can be powered from the USB port, (maximum of 8 relays activated at any one time) or the relays can be isolated from the USB +5V (via a jumper link) and the relays powered from an external +5V supply, in which case all relays can be activated.

A perspex cover and base is available which offers general protection of the card and prevents accidental contact with any of the pcb connections or screw terminal connections.  In addition, there is a DIN rail mount/cover option available.

These are industry standard relay boards and products.  High quality, for professional electronic  automation,  connectivity, and control.

Easydaq products are used in research and education, security, industrial applications, power and energy management,  motor and device  control. There are uses across various industries, including  maritime , rail,  automotive, automation, measuring and calibration, agriculture , medical, sanitation, light and power solutions, fire protection, security, and many more.

You can order any of our boards with customisations or without connectors fitted - contact us for prices

Download Datasheet - Original V1 design.

Download Datasheet - New V2 design draft document.

EasyDAQ is primarily a business-to business seller, supplying products around the world, therefore advertised prices exclude VAT. Customers in the UK and Northern Ireland will be charged VAT  at checkout.

Operational Parameters
Manufacturer EASYDAQ
Control Interface USB
Relay coil voltage 6V
Relay Channels 24
Relay Type POWER
Opto-isolated YES


  • Brand: Easydaq
  • Product Code:USB24MxP
  • Availability:In Stock
  • £169.01

  • 10 or more £135.21
  • 25 or more £120.00
  • 50 or more £112.56
  • 100 or more £105.80
  • 250 or more £98.87
  • 500 or more £91.60
  • 500 or more £91.60
